Extension drilling

Extension rods




MF MT60 Round 82mm
Eff. Length Part number
3050mm MT6060-3050-82
3660mm MT6060-3660-82
4270mm MT6060-4270-82
4905mm MT6060-4905-82

MF MT60 Round 85mm
Eff. Length Part number
3050mm MT6060-3050-85
3660mm MT6060-3660-85
4270mm MT6060-4270-85
4905mm MT6060-4905-85

MF Guide rods MT60 Round 87mm
Eff. Length Part number
4265mm MT6060-4270-G


R32 Round 32mm
Eff. Length Part number
1220mm EX3232-1220-32
1525mm EX3232-1525-32
1830mm EX3232-1830-32
2430mm EX3232-2430-32
3050mm EX3232-3050-32
3660mm EX3232-3660-32

MF R32 Round 32mm
Eff. Length Part number
1220mm MF3232-1220-32
1525mm MF3232-1525-32
1830mm MF3232-1830-32
2430mm MF3232-2430-32
3050mm MF3232-3050-32
3660mm MF3232-3660-32
4270mm MF3232-4270-32

MF Guide rods R32 Round 44mm
Eff. Length Part number
3050mm MF3232-3050-44
3660mm MF3232-3660-44
4270mm MF3232-4270-44


T38 HEX 32mm
Eff. Length Part number
3050mm EX3838-3050-32
3660mm EX3838-3660-32
4270mm EX3838-4270-32

T38 Round 39mm
Eff. Length Part number
1220mm EX3838-1220-39
1525mm EX3838-1525-39
1830mm EX3838-1830-39
2430mm EX3838-2430-39
3050mm EX3838-3050-39
3660mm EX3838-3660-39
4270mm EX3838-4270-39
4905mm EX3838-4905-39

MF T38 Round 39mm
Eff. Length Part number
1220mm MF3838-1220-39
1525mm MF3838-1525-39
1830mm MF3838-1830-39
2430mm MF3838-2430-39
3050mm MF3838-3050-39
3660mm MF3838-3660-39
4270mm MF3838-4270-39
4905mm MF3838-4905-39

MF Guide rods T38 Round 55mm
Eff. Length Part number
1220mm MF3838-1220-55
1525mm MF3838-1525-55
1830mm MF3838-1830-55
2430mm MF3838-2430-55
3050mm MF3838-3050-55

MF Guide rods T38 Round 64mm
Eff. Length Part number
1220mm MF4545-1220-64
1525mm MF4545-1525-64
1830mm MF4545-1830-64
2430mm MF4545-2430-64
3050mm MF4545-3050-64


T45 HEX 38mm
Eff. Length Part number
3050mm EX4545-3050-38
3660mm EX4545-3660-38
4270mm EX4545-4270-38

T45 Round 45mm
Eff. Length Part number
1220mm EX4545-1220-45
1525mm EX4545-1525-45
1830mm EX4545-1830-45
2430mm EX4545-2430-45
3050mm EX4545-3050-45
3660mm EX4545-3660-45
4270mm EX4545-4270-45
4905mm EX4545-4905-45

MF T45 Round 45mm
Eff. Length Part number
1220mm MF4545-1220-45
1525mm MF4545-1525-45
1830mm MF4545-1830-45
2430mm MF4545-2430-45
3050mm MF4545-3050-45
3660mm MF4545-3660-45
4270mm MF4545-4270-45
4905mm MF4545-4905-45


T51 Round 51mm
Eff. Length Part number
1220mm EX5151-1220-51
1525mm EX5151-1525-51
1830mm EX5151-1830-51
2430mm EX5151-2430-51
3050mm EX5151-3050-51
3660mm EX5151-3660-51
4270mm EX5151-4270-51
4905mm EX5151-4905-51

MF T51 Round 51mm
Eff. Length Part number
1220mm MF5151-1220-51
1525mm MF5151-1525-51
1830mm MF5151-1830-51
2430mm MF5151-2430-51
3050mm MF5151-3050-51
3660mm MF5151-3660-51
4270mm MF5151-4270-51
4905mm MF5151-4905-51

MF Guide rods T51 Round 76mm
Eff. Length Part number
1220mm MF5151-1220-76
1525mm MF5151-1525-76
1830mm MF5151-1830-76
2430mm MF5151-2430-76
3050mm MF5151-3050-76


MF T60 Round 60mm
Eff. Length Part number
3050mm MF6060-3050-60
3660mm MF6060-3660-60
4270mm MF6060-4270-60
4905mm MF6060-4905-60

MF Guide rods T60 Round
Eff. Length Part number
3660mm MF6060-3660-G
4270mm MF6060-4270-G


R25 HEX 25mm
Eff. Length Part number
610mm H25 R25 610
915mm H25 R25 915
1220mm H25 R25 1220
1525mm H25 R25 1525
1830mm H25 R25 1830
2430mm H25 R25 2430
3050mm H25 R25 3050
3660mm H25 R25 3660

Button bits




Button bits MT60 102ND
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
102 8 x 14mm 6 x 12mm - 4 x 9mm 35 60MT102ND

Button bits MT60 102RD
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
102 8 x 14mm 6 x 12mm - 4 x 9mm 35 60MT102RD

Button bits MT60 115RD
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
115 8 x 14nn 4 x 14mm - 4 x 11mm 35 60MT115RD

Button bits MT60 115ND
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
115 8 x 14nn 4 x 14mm - 4 x 11mm 35 60MT115ND

Button bits MT60 127RD
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
127 10 x 14nn 9 x 14mm - 5 x 11mm 35 60MT127RD

Button bits MT60 127ND
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
127 10 x 14nn 9 x 14mm - 5 x 11mm 35 60MT127ND

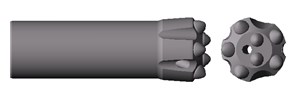

Button bits R25 NF
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
33 5 x 7mm 2 x 7mm 2 x 5mm 1 x 5mm 35 25R33NF
35 5 x 8mm 2 x 7mm 2 x 5mm 1 x 5mm 35 25R35NF
37 5 x 9mm 2 x 7mm 2 x 5mm 1 x 5mm 35 25R37NF
38 5 x 9mm 2 x 7mm 2 x 5mm 1 x 5mm 35 25R38NF
41 5 x 9mm 2 x 8mm 2 x 5mm 1 x 5mm 35 25R41NF
45 5 x 10mm 2 x 9mm 2 x 6mm 1 x 6mm 35 25R45NF
48 5 x 10mm 2 x 9mm 2 x 6mm 1 x 5mm 35 25R48NF

Button bits R25 NF8
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
33 6 x 7mm 2 x 7mm 1 x 5mm 2 x 5mm 35 25R33NF8
35 6 x 7mm 2 x 7mm 1 x 5mm 2 x 5mm 35 25R35NF8
37 6 x 8mm 2 x 7mm 1 x 5mm 2 x 5mm 35 25R37NF8
38 6 x 8mm 2 x 7mm 1 x 5mm 2 x 5mm 35 25R38NF8
41 6 x 8mm 2 x 8mm 1 x 5mm 2 x 5mm 35 25R41NF8
45 6 x 9mm 2 x 8mm 1 x 6mm 2 x 6mm 35 25R45NF8
48 6 x 10mm 2 x 9mm 1 x 6mm 2 x 6mm 35 25R48NF8

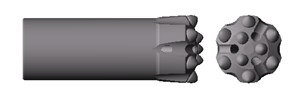

Button bits R25 NG
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
38 6 x 8mm 3 x 7mm 1 x 5mm 3 x 5mm 35 25R38NG
45 6 x 9mm 3 x 7mm 1 x 5mm 3 x 5mm 35 25R45NG
48 6 x 10mm 3 x 9mm 1 x 6mm 3 x 5mm 35 25R48NG
51 6 x 10mm 3 x 9mm 1 x 6mm 3 x 5mm 35 25R51NG


Button bits R28 NF
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
37 5 x 9mm 2 x 7mm 2 x 5mm 1 x 5mm 35 28R37NF
38 5 x 9mm 2 x 7mm 2 x 5mm 1 x 5mm 35 28R38NF
41 5 x 9mm 2 x 8mm 2 x 5mm 1 x 5mm 35 28R41NF
45 5 x 10mm 2 x 9mm 2 x 6mm 1 x 6mm 35 28R45NF
48 5 x 10mm 2 x 9mm 2 x 6mm 1 x 6mm 35 28R48NF

Button bits R28 NF8
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
37 6 x 8mm 2 x 7mm 1 x 5mm 2 x 5mm 35 28R37NF8
38 6 x 8mm 2 x 7mm 1 x 5mm 2 x 5mm 35 28R38NF8
41 6 x 8mm 2 x 8mm 1 x 5mm 2 x 5mm 35 28R41NF8
45 6 x 9mm 2 x 8mm 1 x 6mm 2 x 6mm 35 28R45NF8
48 6 x 10mm 2 x 9mm 1 x 6mm 2 x 6mm 35 28R48NF8

Button bits R28 NG
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
38 6 x 8mm 3 x 7mm 1 x 5mm 3 x 5mm 35 28R38NG
45 6 x 9mm 3 x 8mm 1 x 5mm 3 x 5mm 35 28R45NG
48 6 x 10mm 3 x 9mm 1 x 6mm 3 x 5mm 35 28R48NG
51 6 x 10mm 3 x 9mm 1 x 6mm 3 x 5mm 35 28R51NG

Button bits R28 RD
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
45 6 x 9mm 3 x 8mm - 3 x 5mm 35 28R45RD


Button bits R32 NF
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
45 5 x 10mm 2 x 9mm 2 x 6mm 1 x 6mm 35 32R45NF
48 5 x 10mm 2 x 9mm 2 x 6mm 1 x 6mm 35 32R48NF
51 5 x 10mm 2 x 9mm 2 x 6mm 1 x 6mm 35 32R51NF

Button bits R32 NF8
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
41 6 x 8mm 2 x 8mm 1 x 5mm 2 x 5mm 35 32R41NF8
43 6 x 9mm 2 x 8mm 1 x 5mm 2 x 5mm 35 32R43NF8

Button bits R32 NG
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
45 6 x 9mm 3 x 8mm 1 x 5mm 3 x 5mm 35 32R45NG

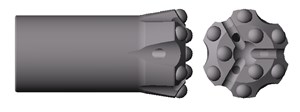

Button bits R32 ND
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
48 6 x 10mm 3 x 9mm 1 x 6mm 3 x 5mm 35 32R48ND
51 6 x 10mm 3 x 9mm 1 x 6mm 3 x 5mm 35 32R51ND
64 6 x 11mm 3 x 10mm 1 x 7mm 3 x 8mm 35 32R64ND

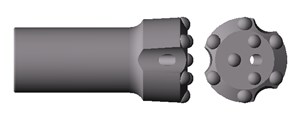

Button bits R32 57NF
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
57 6 x 10mm 3 x 9mm 1 x 8mm 1 x 8mm 35 32R57NF

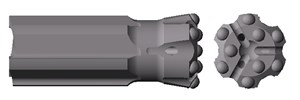

Button bits R32 RD
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
48 6 x 10mm 3 x 9mm - 3 x 5mm 35 32R48RD
51 6 x 10mm 3 x 9mm - 3 x 5mm 35 32R51RD
64 6 x 11mm 3 x 10mm 1 x 7mm 3 x 8mm 35 32R64RD

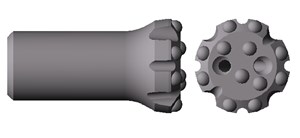

Button bits R32 64NF
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
64 8 x 10mm 4 x 10mm 1 x 7mm 2 x 9mm 35 32R64NF

Button bits R32 76NF
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
76 6 x 12mm 4 x 10mm 1 x 7mm 3 x 8mm 35 32R76NF

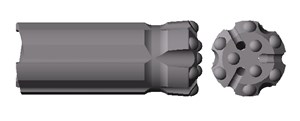

Button bits T38 RG
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
54 6 x 10mm 3 x 9mm - 3 x 6mm 35 38T54RG

Button bits T38 64NF
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
64 8 x 10mm 4 x 10mm 1 x 7mm 2 x 9mm 35 38T64NF

Button bits T38 76NF
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
76 6 x 12mm 4 x 10mm 1 x 7mm 3 x 8mm 35 38T76NF

Button bits T38 64-76ND
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
64 8 x 10mm 4 x 10mm, 1 x 8mm - 4 x 8mm 35 38T64ND
70 8 x 11mm 5 x 10mm - 4 x 7mm 35 38T70ND
76 8 x 12mm 5 x 11mm - 4 x 8mm 35 38T76ND

Button bits T38 64-70RD
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
64 8 x 10mm 4 x 10mm, 1 x 8mm - 4 x 8mm 35 38T64RD
70 8 x 11mm 5 x 10mm - 4 x 7mm 35 38T70RD

Button bits T38 76RD
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
76 8 x 12mm 5 x 11mm - 4 x 8mm 35 38T76RD

Button bits T38 83RD
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
83 8 x 13mm 5 x 11mm - 4 x 8mm 35 38T83RD

Button bits T38 89-102ND
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
89 8 x 13mm 6 x 11mm - 4 x 8mm 35 38T89ND
102 8 x 14mm 6 x 12mm - 4 x 9mm 35 38T102ND

Button bits T38 89-102RD
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
89 8 x 13mm 6 x 11mm - 4 x 8mm 35 38T89RD
102 8 x 14mm 6 x 12mm - 4 x 9mm 35 38T102RD

Button bits T38 102NF
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
102 9 x 14mm 6 x 12mm - 3 x 12mm 40 38T102NF

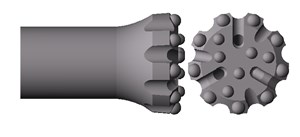

Button bits T38 NG
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
102 9 x 14mm 6 x 12mm - 3 x 12mm 40 38T102NG

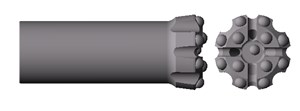

Button bits T45 66-76ND
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
66 8 x 10mm 4 x 10mm, 1 x 8mm - 4 x 8mm 35 45T66ND
70 8 x 11mm 5 x 10mm - 4 x 7mm 35 45T70ND
76 8 x 12mm 5 x 11mm - 4 x 8mm 35 45T76ND

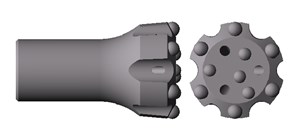

Button bits T45 76NF
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
76 6 x 12mm 4 x 10mm 1 x 7mm 3 x 8mm 35 45T76NF

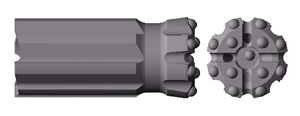

Button bits T45 66-70RD
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
66 8 x 10mm 4 x 10mm, 1 x 8mm - 4 x 8mm 35 45T66RD
70 8 x 11mm 5 x 10mm - 4 x 7mm 35 45T70RD

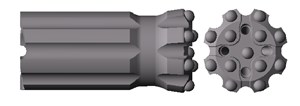

Button bits T45 76RD
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
76 8 x 12mm 5 x 11mm - 4 x 8mm 35 45T76RD

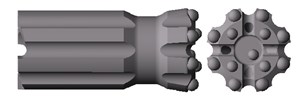

Button bits T45 83RD
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
83 8 x 13mm 5 x 11mm - 4 x 8mm 35 45T83RD

Button bits T45 89-102ND
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
89 8 x 13mm 6 x 11mm - 4 x 8mm 35 45T89ND
102 8 x 14mm 6 x 12mm - 4 x 9mm 35 45T102ND

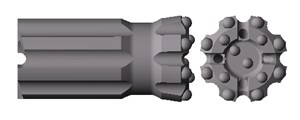

Button bits T45 89-102RD
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
89 8 x 13mm 6 x 11mm - 4 x 8mm 35 45T89RD
102 8 x 14mm 6 x 12mm - 4 x 9mm 35 45T102RD

Button bits T45 102NF
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
102 9 x 14mm 6 x 12mm - 3 x 12mm 40 45T102NF

Button bits T45 102NG
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
102 9 x 14mm 6 x 12mm - 3 x 12mm 40 45T102NG

Button bits T45 115RD
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
115 8 x 14nn 4 x 14mm - 4 x 11mm 35 45T115RD

Button bits T45 115ND
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
115 8 x 14nn 4 x 14mm - 4 x 11mm 35 45T115ND

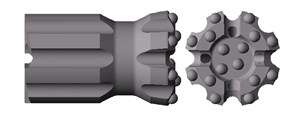

Button bits T45 127RD
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
127 10 x 14nn 9 x 14mm - 5 x 11mm 35 45T127RD

Button bits T45 127ND
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
127 10 x 14nn 9 x 14mm - 5 x 11mm 35 45T127ND


Button bits T51 83RD
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
83 8 x 13mm 5 x 11mm - 4 x 8mm 35 51T83RD

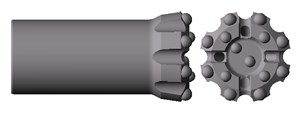

Button bits T51 89-102ND
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
89 8 x 13mm 6 x 11mm - 4 x 8mm 35 51T89ND
102 8 x 14mm 6 x 12mm - 4 x 9mm 35 51T102ND

Button bits T51 89-102RD
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
89 8 x 13mm 6 x 11mm - 4 x 8mm 35 51T89RD
102 8 x 14mm 6 x 12mm - 4 x 9mm 35 51T102RD

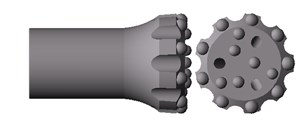

Button bits T51 102NF
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
102 9 x 14mm 6 x 12mm - 3 x 12mm 40 51T102NF

Button bits T51 102NG
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
102 9 x 14mm 6 x 12mm - 3 x 12mm 40 51T102NG

Button bits T51 115RD
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
115 8 x 14nn 4 x 14mm - 4 x 11mm 35 51T115RD

Button bits T51 115ND
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
115 8 x 14nn 4 x 14mm - 4 x 11mm 35 51T115ND

Button bits T51 127RD
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
127 10 x 14nn 9 x 14mm - 5 x 11mm 35 51T127RD

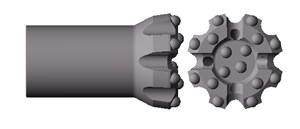

Button bits T51 127ND
Dia mm Gauge carbide Front carbide Side flushing Face flushing Gauge angle Part number
127 10 x 14nn 9 x 14mm - 5 x 11mm 35 51T127ND

Shank adaptors



Thread Description Length mm
T38 A/C BBE57,MONT H100 537 mm
T45 A/C BBE57,MONT H100 537 mm
R32 A/COPCO COP125,130,131 405 mm
T38 A/COPCO COP125,130,131 381 mm
T38 A/COPCO COP131EB 381 mm
R28 A/COPCO 1028HB 400 mm
R32 A/COPCO 1028HB 400 mm
R38 A/C COP1038 HD,1038 HL 485 mm
T38 A/C COP1038 HD,COP1238 485 mm
T38 A/COPCO COP1038HL,1238 500 mm
T45 A/COPCO COP1038HL,1238 500 mm
R32 A/COPCO COP1038HL,1238 575 mm
T38 A/COPCO COP1038HL,1238 575 mm
T45 A/COPCO COP1038HL,1238 575 mm
T45 A/COPCO COP1038HL,1238 590 mm
R32 A/COPCO COP1038(COLLAR) 575 mm
T38 A/COPCO COP1038(COLLAR) 575 mm
R32 A/C COP1036HB,1038HB,1238 (COLLAR) 575 mm
R38 A/C COP1036HB,1038HB,1238 (COLLAR) 575 mm
T38 A/C COP1036HB,1038HB,1238 (COLLAR) 575 mm
T45 A/C COP1036HB,1038HB,1238 (COLLAR) 575 mm
R28 A/C COP1132 410 mm
R32 A/C COP1132 410 mm
T35 A/C COP1132 410 mm
R32 A/C COP1132 500 mm
T35 A/C COP1132 500 mm
R32F A/C COP1132 (Female) 280 mm
R32F A/C COP1432, COP1532 FEMALE 341 mm
R38F A/C COP1432, COP1532 FEMALE 341 mm
T38F A/C COP1432, COP1532 FEMALE 341 mm
R32 COP1338 EXTRACTOR 780 mm
T38 COP1338 EXTRACTOR 780 mm
T45 COP1338 EXTRACTOR 780 mm
R32 ATLAS COPCO COP1435 500 mm
T35 ATLAS COPCO COP1435 500 mm
R32 A/COPCO COP1440, COP1550, COP1638, COP1838, COP2238 435 mm
T35 A/COPCO COP1440, COP1550, COP1638, COP1838, COP2238 435 mm
R38 A/COPCO COP1440, COP1550, COP1638, COP1838, COP2238 435 mm
T38 A/COPCO COP1440, COP1550, COP1638, COP1838, COP2238 435 mm
R32 A/COPCO COP1440, COP1550, COP1638, COP1838, COP2238 525 mm
T35 A/COPCO COP1440, COP1550, COP1638, COP1838, COP2238 525 mm
R38 A/COPCO COP1440, COP1550, COP1638, COP1838, COP2238 525 mm
T38 A/COPCO COP1440, COP1550, COP1638, COP1838, COP2238 525 mm
R32 A/COPCO COP1440,COP1550,1838HD (D=52mm) 525 mm
T35 A/COPCO COP1440,COP1550,1838HD (D=52mm) 525 mm
T38 A/COPCO COP1440,COP1550,1838HD (D=52mm) 525 mm
T45 A/COPCO COP1440,COP1550,1838HD (D=52mm) 525 mm
T51 A/COPCO COP1440,COP1550,1838HD (D=52mm) 525 mm
T38 A/COPCO COP1838MUX 730 mm
T45 A/COPCO COP1838MUX 730 mm
T38 A/COPCO COP 1838EX 730 mm
T45 A/COPCO COP 1838EX 730 mm
T51 A/COPCO COP 1838EX 730 mm
T45 A/COPCO COP 1850,1840HE,2150HE 565 mm
T51 A/COPCO COP 1850,1840HE,2150HE 565 mm
T51 A/COPCO COP 1850,1840HE,2150HE 770 mm
T51 A/COPCO COP 2150/2550 (STRAIGHT SPLINE) 770 mm
T38 COP 1240/1640/1840/1850/2150/2550HEX 770 mm
T45 COP 1240/1640/1840/1850/2150/2550HEX 770 mm
T51 COP 1240/1640/1840/1850/2150/2550HEX 770 mm
T51 A/COPCO COP 2160/2560 EXTRACTOR 770 mm
MT60 A/COPCO COP 2160/2560 EXTRACTOR 770 mm
T38 A/COPCO COP 3038 435 mm
T45 A/COPCO COP 3038 435 mm
T38 A/COPCO COP 3038HE (Helical) 435 mm
T45 A/COPCO COP 3038HE (Helical) 435 mm
T38 A/COPCO COP 3038HE (Helical) 525 mm
T58 ATLAS COPCO COP4050 MUX 835 mm
T68 ATLAS COPCO COP4050 MUX 835 mm

Thread Description Length mm
R32F BOART HD65 (female) 324 mm
R32 BOART HD65 445 mm
R32 BOART HD125,HD150 495 mm
R38 BOART HD125,HD150 495 mm
T38 BOART HD125,HD150 495 mm

Thread Description Length mm
T38F CANNON CH38 (JOYJH-2)(55mm Body,female) 390 mm
T45 CANNON CH38 (JOYJH-2)(55mm Body,) 525 mm
T38 CANNON CH38 (JOYJH-2) (38mm Body) 444 mm

Thread Description Length mm
T38 JOY VCR260 /360 432 mm

Thread Description Length mm
R25 DOOFOR DF425/430S 400 mm
R28 DOOFOR DF425/430S 400 mm
R32 DOOFOR DF528 424 mm
R32 DOOFOR DF528HD 470 mm
R38 DOOFOR DF528HD 470 mm
P38 DOOFOR DF528HD 470 mm
R32 DOOFOR DF545 515 mm
R38 DOOFOR DF545 515 mm
T38 DOOFOR DF545 515 mm
R32 DOOFOR DF545HD 515 mm
R38 DOOFOR DF545HD 515 mm
T38 DOOFOR DF545HD 515 mm
T45 DOOFOR DF545HD 515 mm
R32 DOOFOR DF545EXT 582 mm
R38 DOOFOR DF545EXT 582 mm
T38 DOOFOR DF545EXT 582 mm
R32 DOOFOR DF545EXT HD 582 mm
R38 DOOFOR DF545EXT HD 582 mm
T38 DOOFOR DF545EXT HD 582 mm
T45 DOOFOR DF545EXT HD 582 mm

Thread Description Length mm
R38 FURUKAWA PD200(H/D CHUCK) 381 mm
T38 FURUKAWA PD200(H/D CHUCK) 381 mm
T45 FURUKAWA PD200(H/D CHUCK) 381 mm
T38 FURUKAWA HD90 512 mm
R38 FURUKAWA HD150 520 mm
T38 FURUKAWA HD150 520 mm
T38 FURUKAWA HD180 455 mm
R38 FURUKAWA HD190 480 mm
T38 FURUKAWA HD190 480 mm
T38 FURUKAWA HD210 430 mm
T38 FURUKAWA HD260,HD300 655 mm
T45 FURUKAWA HD260,HD300 655 mm
T38 FURUKAWA HD500 (6 SPLINE) 625 mm
T45 FURUKAWA HD500 (6 SPLINE) 625 mm
T38 FURUKAWA HD609 615 mm
T45 FURUKAWA HD609 615 mm
T38 FURUKAWA HD609 690 mm
T45 FURUKAWA HD609 690 mm
T38 FURUKAWA HD609QED 860 mm
T45 FURUKAWA HD609QED 860 mm
T45 FURUKAWA HD612 710 mm
T51 FURUKAWA HD612 710 mm
T45 FURUKAWA HD612QED 900 mm
T51 FURUKAWA HD612QED 900 mm
T51 FURUKAWA HD615 880 mm
T51 FURUKAWA HD615QED 880 mm
T45 FURUKAWA HD709 620 mm
T45 FURUKAWA HD709QED 800 mm
T45 FURUKAWA HD712 590 mm
T51 FURUKAWA HD712 590 mm
T45 FURUKAWA HD712 790 mm
T51 FURUKAWA HD712 790 mm
T45 FURUKAWA HD712QED 880 mm
T51 FURUKAWA HD712QED 880 mm
T51 FURUKAWA HD715 790 mm
T51 FURUKAWA HD715QED 885 mm

Thread Description Length mm
R32 I/RAND YD90M 330 mm
T38 I/RAND YH65.70,75,80 496 mm
T45 I/RAND YH65.70,75,80 496 mm
T38 I/RAND YH65.70,75,80 700 mm
T45 I/RAND YH65.70,75,80 700 mm
T38 I/RAND YH65RP,80RP 700 mm
T45 I/RAND YH65RP,80RP 700 mm
T45 I/RAND YH80A 500 mm
T45 I/RAND YH 95,100 622 mm
T51 I/RAND YH 95,100 622 mm
T45 I/RAND YH110VRP 900 mm
T51 I/RAND YH110VRP 900 mm

Thread Description Length mm
R32F MONTABERT HC20 (D=45mm) FEMALE 187 mm
R32 MONTABERT HC20 (D=45mm) 287 mm
R32 MONTABERT HC25 (D=45mm) 287 mm
T35 MONTABERT HC25 (D=45mm) 287 mm
R38 MONTABERT HC25 (D=45mm) 287 mm
T38 MONTABERT HC25 (D=45mm) 287 mm
R32 MONTABERT HC25 (D=45mm) FEMALE 202 mm
R32 MONTABERT HC40/HC50 (D=38mm) 438 mm
T35 MONTABERT HC40/HC50 (D=38mm) 438 mm
R38 MONTABERT HC40/HC50 (D=38mm) 438 mm
T38 MONTABERT HC40/HC50 (D=38mm) 438 mm
R32 MONTABERT HC40 FEMALE (D=45mm) 270 mm
R38 MONTABERT HC80, HC90, HC105 (D=38mm) 440 mm
T38 MONTABERT HC80, HC90, HC105 (D=38mm) 440 mm
R38 MONTABERT HC80, HC90, HC105 (D=38mm) 508 mm
T38 MONTABERT HC80, HC90, HC105 (D=38mm) 508 mm
R38 MONTABERT HC80, HC109, HC110, HC120 , (D=45mm) 490 mm
T38 MONTABERT HC80, HC109, HC110, HC120 , (D=45mm) 490 mm
T45 MONTABERT HC80, HC109, HC110, HC120 , (D=45mm) 490 mm
R38 MONTABERT HC80, HC109, HC110, HC120 , (D=45mm) 530 mm
T38 MONTABERT HC80, HC109, HC110, HC120 , (D=45mm) 530 mm
T45 MONTABERT HC80, HC109, HC110, HC120 , (D=45mm) 530 mm
T35 MONTABERT HC80R, HC105R, HC107R, HC108R 670 mm
T38 HC109R, HC110R, HC120R (D=45mm) 670 mm
T45 HC109R, HC110R, HC120R (D=45mm) 670 mm
T45 HC109R, HC110R, HC120R (D=45mm) 770 mm
T45 MONTABERT HC120R, HC150R, HC155R, HC158R (D=51mm) 670 mm
T51 MONTABERT HC120R, HC150R, HC155R, HC158R (D=51mm) 670 mm
T45 MONTABERT HC120R, HC150R, HC155R, HC158R (D=51mm) 770 mm
T51 MONTABERT HC120R, HC150R, HC155R, HC158R (D=51mm) 770 mm
T45 MONTABERT HC160,170 807 mm
T51 MONTABERT HC160,170 807 mm
MT60 MONTABERT HC160,170 807 mm
T51 MONTABERT HC200A 840 mm
T60 MONTABERT HC200A 840 mm
MT60 MONTABERT HC200A 840 mm

Thread Description Length mm
R32 TAMROCK HL300S FEMALE 245 mm
R32 TAMROCK HL300 400 mm
R32 TAMROCK L400,L410,L500,L510 381 mm
R38 TAMROCK HLR438,L550 381 mm
T38 TAMROCK HLR438,L550 381 mm
R38 TAMROCK HL438TS,HL538 450 mm
T38 TAMROCK HL438TS,HL538 450 mm
R32 TAMROCK HL438TS,HL538 495 mm
R38 TAMROCK HL438TS,HL538 495 mm
T38 TAMROCK HL438TS,HL538 495 mm
R32 TAMROCK HL500 S, HL510 S (D=38mm) 450 mm
R38 TAMROCK HL500 S, HL510 S (D=38mm) 450 mm
T38 TAMROCK HL500 S, HL510 S (D=38mm) 450 mm
T38 TAMROCK HL500 S, HL510 S (D=38mm) 550 mm
R32 TAMROCK HL500, HL510 (D=45mm) 550 mm
T35 TAMROCK HL500, HL510 (D=45mm) 550 mm
T38 TAMROCK HL500, HL510 (D=45mm) 550 mm
T45 TAMROCK HL500, HL510 (D=45mm) 550 mm
R32 TAMROCK HL500 (FEMALE) 350 mm
T35 TAMROCK HL550 SUPER,560 SUPER 500 mm
R38 TAMROCK HL550 SUPER,560 SUPER 500 mm
T38 TAMROCK HL550 SUPER,560 SUPER 500 mm
T45 TAMROCK HL550 SUPER,560 SUPER 500 mm
R25 TAMROCK HLX1 255 mm
R28 TAMROCK HLX1 255 mm
R32 TAMROCK RD314 (FEMALE) 205 mm
T38 TAMROCK RD520/RD525 525 mm
T35 TAMROCK RD520/RD525 600 mm
T38 TAMROCK RD520/RD525 600 mm
T35 TAMROCK RD520/RD525 745 mm
T38 TAMROCK RD520/RD525 745 mm
R32 TAMROCK HLX5/HFX5T 500 mm
T35 TAMROCK HLX5/HFX5T 500 mm
R38 TAMROCK HLX5/HFX5T 500 mm
T38 TAMROCK HLX5/HFX5T 500 mm
T45 TAMROCK HLX5/HFX5T 500 mm
R32 TAMROCK HLX5/HFX5T 575 mm
T35 TAMROCK HLX5/HFX5T 575 mm
T38 TAMROCK HLX5/HFX5T 575 mm
T45 TAMROCK HLX5/HFX5T 575 mm
T38 TAMROCK HL600 (D=45mm) 525 mm
T45 TAMROCK HL600 (D=45mm) 525 mm
T38 TAMROCK HL600 (D=45mm) 600 mm
T45 TAMROCK HL600 (D=45mm) 600 mm
T45 TAMROCK HL600 (D=52mm) 650 mm
T51 TAMROCK HL600 (D=52mm) 650 mm
T38 TAMROCK HL700/HL710/HL800T/HF810T/HL650 (D=45mm) 600 mm
T45 TAMROCK HL700/HL710/HL800T/HF810T/HL650 (D=45mm) 600 mm
T51 TAMROCK HL700/HL710/HL800T/HF810T/HL650 (D=45mm) 600 mm
T38 TAMROCK HL700,HL710,HL800,HF810,HL650,HL810 (D=52mm) 600 mm
T45 TAMROCK HL700,HL710,HL800,HF810,HL650,HL810 (D=52mm) 600 mm
T51 TAMROCK HL700,HL710,HL800,HF810,HL650,HL810 (D=52mm) 600 mm
T45 TAMROCK HL1000, HL1010, HL1010S (D=52mm) 590 mm
T51 TAMROCK HL1000, HL1010, HL1010S (D=52mm) 590 mm
T45 TAMROCK HL1000, HL1010, HL1010S (D=52mm) 670 mm
T51 TAMROCK HL1000, HL1010, HL1010S (D=52mm) 670 mm
T51 TAMROCK HL1000, HL1010 (D=60mm) 670 mm
T60 TAMROCK HL1000, HL1010 (D=60mm) 670 mm
MT60 TAMROCK HL1000, HL1010 (D=60mm) 670 mm
T58 TAMROCK HL1000 (80mm), HL1010, (SHOULDER DRIVE) 635 mm
T68 TAMROCK HL1000 (80mm), HL1010, (SHOULDER DRIVE) 635 mm
T51 TAMROCK HL1000 EXTRACTOR (D=52mm) 840 mm
T51 TAMROCK HL1500 (D=60mm) 760 mm
T60 TAMROCK HL1500 (D=60mm) 760 mm
MT60 TAMROCK HL1500 (D=60mm) 760 mm
T58 TAMROCK HL1500 (D=80mm) (SHOULDER DRIVE) 635 mm
T68 TAMROCK HL1500 (D=80mm) (SHOULDER DRIVE) 635 mm
T51 TAMROCK HL1500PE,1000PE,1560T(D=65mm) 760 mm
T60 TAMROCK HL1500PE,1000PE,1560T(D=65mm) 760 mm
MT60 TAMROCK HL1500PE,1000PE,1560T(D=65mm) 760 mm

Couplings



Couplings R25
Diameter Length Description Part number
35 mm 149 mm R25 SB CPL CPLR25-35

Couplings R32
Diameter Length Description Part number
45 mm 159 mm R32 SB CPL CPLR32-45

Couplings T38
Diameter Length Description Part number
55 mm 190 mm T38 SB CPL CPLT38-55

Couplings T45
Diameter Length Description Part number
63 mm 207 mm T45 SB CPL CPLT45-63

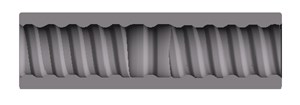

Couplings T51
Diameter Length Description Part number
72 mm 234 mm T51 SB CPL CPLT51-72
Contact us
Back
FOR PARTNERS: Looking for logos and media files? Visit our ONLINE BRAND GUIDE

By using this website you agree to our privacy policy and our use of cookies.
ÅPENHETSLOVEN

Designed and developed by Norgesdesign. Powered by Paperfree
