Small hole drilling tools

Plug hole rods



SHANK 19mm x 108mm
Length Diameter Weight Part number
200mm 17mm 0,8kg 0721 2017-20
250mm 17mm 0,9kg 0721 2517-20
300mm 17mm 1,0kg 0721 3017-20
200mm 20mm 0,8kg 0721 2020-20
250mm 20mm 0,9kg 0721 2520-20
300mm 20mm 1,0kg 0721 3020-20
200mm 22mm 0,8kg 0721 2022-20
250mm 22mm 0,9kg 0721 2522-20
300mm 22mm 1,0kg 0721 3022-20
250mm 23mm 0,9kg 0721 2523-20

SHANK 19mm x 82,5mm
Length Diameter Weight Part number
200mm 17mm 0,8kg 0722 2017-20
250mm 17mm 0,9kg 0722 2517-20
300mm 17mm 1,0kg 0722 3017-20
200mm 20mm 0,8kg 0722 2020-20
250mm 20mm 0,9kg 0722 2520-20
300mm 20mm 1,0kg 0722 3020-20
200mm 22mm 0,8kg 0722 2022-20
250mm 22mm 0,9kg 0722 2522-20
300mm 22mm 1,0kg 0722 3022-20
250mm 23mm 0,9kg 0722 2523-20

SHANK 22mm x 108mm
Length Diameter Weight Part number
200mm 17mm 0,8kg 0711 2017-20
250mm 17mm 0,9kg 0711 2517-20
300mm 17mm 1,0kg 0711 3017-20
400mm 17mm 1,2kg 0711 4017-20
200mm 20mm 0,8kg 0711 2020-20
250mm 20mm 0,9kg 0711 2520-20
300mm 20mm 1,0kg 0711 3020-20
400mm 20mm 1,2kg 0711 4020-20
200mm 22mm 0,8kg 0711 2022-20
250mm 22mm 0,9kg 0711 2522-20
300mm 22mm 1,0kg 0711 3022-20
400mm 22mm 1,2kg 0711 4022-20

SHANK 22mm x 82.5mm
Length Diameter Weight Part number
200mm 17mm 0,8kg 0712 2017-20
250mm 17mm 0,9kg 0712 2517-20
300mm 17mm 1,0kg 0712 3017-20
400mm 17mm 1,2kg 0712 4017-20
200mm 20mm 0,8kg 0712 2020-20
250mm 20mm 0,9kg 0712 2520-20
300mm 20mm 1,0kg 0712 3020-20
400mm 20mm 1,2kg 0712 4020-20
200mm 22mm 0,8kg 0712 2022-20
250mm 22mm 0,9kg 0712 2522-20
300mm 22mm 1,0kg 0712 3022-20
400mm 22mm 1,2kg 0712 4022-20

Integral drill steel



SHANK 19mm x 108mm
Series Length Diameter Weight Part number
21 400mm 29mm 1,65kg 0724 0429-20
21 800mm 28mm 2,85kg 0724 0828-20
21 1200mm 27mm 3,65kg 0724 1227-20
21 1600mm 27mm 4,05kg 0724 1627-20
22 2400mm 26mm 5,85kg 0724 2426-20
22 3200mm 25mm 7,65kg 0724 3225-20
22 4000mm 24mm 9,45kg 0724 4024-20

SHANK 22mm x 108mm HEX 19mm body
Series Length Diameter Weight Part number
400mm 29mm 1,65kg 0728 0429-20
800mm 28mm 2,85kg 0728 0828-20
1200mm 27mm 3,15kg 0728 1227-20
1600mm 27mm 4,05kg 0728 1627-20
2400mm 26mm 5,85kg 0728 2426-20
3200mm 25mm 7,65kg 0728 3225-20
4000mm 24mm 9,45kg 0728 4024-20
400mm 26mm 1,35kg 0728 0426-20
800mmm 25mm 2,25kg 0728 0825-20
1200mm 24mm 3,15kg 0728 1224-20

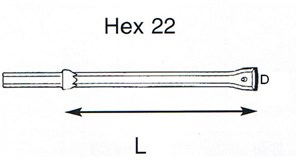

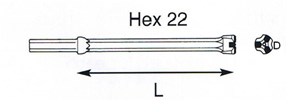

Hex 22
Series Length Diameter Weight Part number
11 800mm 34mm 3,0kg 0714 0834-11
11 1600mm 33mm 5,4kg 0714 1633-11
11 2400mm 32mm 7,8kg 0714 2432-11
11 3200mm 31mm 10,2kg 0714 3231-11
11 4000mm 30mm 12,6kg 0714 4030-11
11 4800mm 29mm 15,0kg 0714 4829-11
11 5600mm 28mm 17,4kg 0714 5628-11
11 6400mm 27mm 19,8kg 0714 6427-11
11 7200mm 26mm 22,2kg 0714 7226-11
12 800mm 40mm 3,0kg 0714 0840-11
12 1600mm 39mm 5,4kg 0714 1639-11
12 2400mm 38mm 7,8kg 0714 2438-11
12 3200mm 37mm 10,2kg 0714 3237-11
12 4000mm 36mm 12,6kg 0714 4036-11
12 4800mm 35mm 15,0kg 0714 4835-11
12 5600mm 34mm 17,4kg 0714 5634-11
12 6400mm 33mm 19,8kg 0714 6433-11
12 7200mm 32mm 22,2kg 0714 7232-11
12 8000mm 31mm 24,6kg 0714 8031-11
12 8800mm 30mm 27,0kg 0714 8830-11
12 9600mm 29mm 29,4kg 0714 9629-11
13 400mm 34mm 1,8kg 0714 0434-11
13 800mm 33mm 3,0kg 0714 0833-11
13 1200mm 32mm 4,2kg 0714 1232-11
13 1600mm 31mm 5,4kg 0714 1631-11
13 2000mm 30mm 6,6kg 0714 2030-11
16 600mm 35mm 2,4kg 0714 0635-11
16 1200mm 34mm 4,2kg 0714 1234-11
16 1800mm 33mm 6,0kg 0714 1833-11
16 2400mm 32mm 7,8kg 0714 2432-11
17 600mm 41mm 2,4kg 0714 0641-11
17 1200mm 40mm 4,2kg 0714 1240-11
17 1800mm 39mm 6,0kg 0714 1839-11
17 2400mm 38mm 7,8kg 0714 2438-11

3-wing and threaded integral drill steel
Length Diameter Weight Part number
2400mm 38mm 7,8kg 0761 2438-10
3200mm 38mm 10,2kg 0761 3238-10
4000mm 38mm 12,6kg 0761 4038-10
4800mm 35mm 15,0kg 0761 4035-10

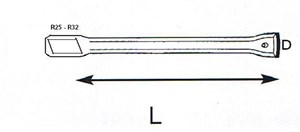

Threaded integral drill steel
Length mm Length ft Diameter Thread Hex Part number
1950mm 6,39ft 23 - 34mm R28 H19 H19R28 1950 23
1950mm 6,39ft 27 – 45mm R28 H22 H22R28 1950 34
1950mm 6,39ft 27 - 45mm R32 H22 H22R32 1950 34

Tapered rods and bits

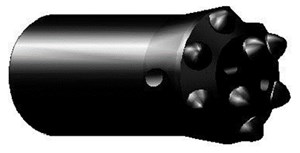

Tapered bits 4° 46 Tapered bits 4° 46
Dia mm Gauge carbide Face carbide Face flushing Side flushing Part number
33 6 X 7MM 2 X 7MM 2 X 5MM 1 X 5MM 446D33-8
33 5 X 7MM 2 X 7MM 1 X 5MM 2 X 5MM 446D33-7
35 6 X 7MM 2 X 7MM 2 X 5MM 1 X 5MM 446D35-8
38 6 X 9MM 2 X 7MM 2 X 5MM 1 X 5MM 446D38-8
41 6 X 9MM 2 X 7MM 2 X 5MM 1 X 5MM 446D41-8
41 5 X 9MM 2 X 7MM 1 X 5MM 2 X 5MM 446D41-7

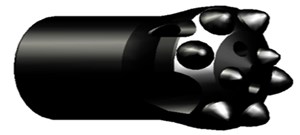

Tapered bits 7° Tapered bits 7°
Dia mm Gauge carbide Face carbide Face flushing Side flushing Part number
33 6 X 7MM 2 X 7MM 2 X 5MM 1 X 5MM 7D33-8
33 5 X 7MM 2 X 7MM 1 X 5MM 2 X 5MM 7D33-7
35 6 X 7MM 2 X 7MM 2 X 5MM 1 X 5MM 7D35-8
38 6 X 9MM 2 X 7MM 2 X 5MM 1 X 5MM 7D38-8
41 6 X 9MM 2 X 7MM 2 X 5MM 1 X 5MM 7D41-8
41 5 X 9MM 2 X 7MM 1 X 5MM 2 X 5MM 7D41-7

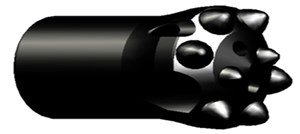

Tapered bits 11° Tapered bits 11°
Dia mm Gauge carbide Face carbide Face flushing Side flushing Part number
33 6 X 7MM 2 X 7MM 2 X 5MM 1 X 5MM 11D33-8
33 5 X 7MM 2 X 7MM 1 X 5MM 2 X 5MM 11D33-7
35 6 X 7MM 2 X 7MM 2 X 5MM 1 X 5MM 11D35-8
38 6 X 9MM 2 X 7MM 2 X 5MM 1 X 5MM 11D38-8
38 5 X 9MM 2 X 7MM 1 X 5MM 2 X 5MM 11D38-7
41 6 X 9MM 2 X 7MM 2 X 5MM 1 X 5MM 11D41-8
41 5 X 9MM 2 X 7MM 1 X 5MM 2 X 5MM 11D41-7

Tapered bits 12° Tapered bits 12°
Dia mm Gauge carbide Face carbide Face flushing Side flushing Part number
32 6 X 7MM 2 X 7MM 2 X 5MM 1 X 5MM 12D32-8
32 5 X 7MM 2 X 7MM 1 X 5MM 2 X 5MM 12D32-7
33 6 X 7MM 2 X 7MM 2 X 5MM 1 X 5MM 12D33-8
33 5 X 7MM 2 X 7MM 1 X 5MM 2 X 5MM 12D33-7
35 6 X 7MM 2 X 7MM 2 X 5MM 1 X 5MM 12D35-8
38 6 X 9MM 2 X 7MM 2 X 5MM 1 X 5MM 12D38-8
38 5 X 9MM 2 X 7MM 1 X 5MM 2 X 5MM 12D38-7
41 6 X 9MM 2 X 7MM 2 X 5MM 1 X 5MM 12D41-8
41 5 X 9MM 2 X 7MM 1 X 5MM 2 X 5MM 12D41-7
45 6 X 9MM 2 X 8MM 2 X5MM 1 X 5MM 12D45-8
45 5 X 9MM 2 X 8MM 1 X 5MM 2 X 5MM 12D45-7


Tapered rods 22x108mm 4° 46
Length mm Length ft Degrees Weight Part number
400mm 1,31ft 4,46° 1,7kg 0714 0400-4,46°
610mm 2,00ft 4,46° 2,3kg 0714 0610-4,46°
800mm 2,62ft 4,46° 2,9kg 0714 0800-4,46°
1220mm 4,00ft 4,46° 4,1kg 0714 1220-4,46°
1600mm 5,24ft 4,46° 5,3kg 0714 1600-4,46°
1830mm 6,00ft 4,46° 5,9kg 0714 1830-4,46°
1980mm 6,49ft 4,46° 6,3kg 0714 1980-4,46°
2440mm 8,00ft 4,46° 7,7kg 0714 2440-4,46°
3050mm 10,00ft 4,46° 9,6kg 0714 3050-4,46°
3200mm 10,49ft 4,46° 10,1kg 0714 3200-4,46°
3660mm 12,00ft 4,46° 11,5kg 0714 3660-4,46°
4000mm 13,12ft 4,46° 12,5kg 0714 4000-4,46°
4800mm 15,74ft 4,46° 14,9kg 0714 4800-4,46°
5485mm 18,00ft 4,46° 17,4kg 0714 5485-4,46°
5600mm 18,37ft 4,46° 17,8kg 0714 5600-4,46°
6400mm 21,00ft 4,46° 19,7kg 0714 6400-4,46°
7200mm 23,62ft 4,46° 22,1kg 0714 7200-4,46°
7315mm 24,00ft 4,46° 22,4kg 0714 7315-4,46°

Tapered rods 22x108mm 7°
Length mm Length ft Degrees Weight Part number
400mm 1,31ft 7° 1,7kg 0714 0400-7°
610mm 2,00ft 7° 2,3kg 0714 0610-7°
800mm 2,62ft 7° 2,9kg 0714 0800-7°
1220mm 4,00ft 7° 4,1kg 0714 1220-7°
1600mm 5,24ft 7° 5,3kg 0714 1600-7°
1830mm 6,00ft 7° 5,9kg 0714 1830-7°
1980mm 6,49ft 7° 6,3kg 0714 1980-7°
2440mm 8,00ft 7° 7,7kg 0714 2440-7°
3050mm 10,00ft 7° 9,6kg 0714 3050-7°
3200mm 10,49ft 7° 10,1kg 0714 3200-7°
3660mm 12,00ft 7° 11,5kg 0714 3660-7°
4000mm 13,12ft 7° 12,5kg 0714 4000-7°
4800mm 15,74ft 7° 14,9kg 0714 4800-7°
5485mm 18,00ft 7° 17,4kg 0714 5485-7°
5600mm 18,37ft 7° 17,8kg 0714 5600-7°
6400mm 21,00ft 7° 19,7kg 0714 6400-7°
7200mm 23,62ft 7° 22,1kg 0714 7200-7°
7315mm 24,00ft 7° 22,4kg 0714 7315-7°

Tapered rods 22x108mm 11°
Length mm Length ft Degrees Weight Part number
400mm 1,31ft 11° 1,7kg 0714 0400-11°
610mm 2,00ft 11° 2,3kg 0714 0610-11°
800mm 2,62ft 11° 2,9kg 0714 0800-11°
915mm 3,00ft 11° 3.45kg 0714 0915-11°
1220mm 4,00ft 11° 4,1kg 0714 1220-11°
1600mm 5,24ft 11° 5,3kg 0714 1600-11°
1830mm 6,00ft 11° 5,9kg 0714 1830-11°
1980mm 6,49ft 11° 6,3kg 0714 1980-11°
2440mm 8,00ft 11° 7,7kg 0714 2440-11°
3050mm 10,00ft 11° 9,6kg 0714 3050-11°
3200mm 10,49ft 11° 10,1kg 0714 3200-11°
3660mm 12,00ft 11° 11,5kg 0714 3660-11°
4000mm 13,12ft 11° 12,5kg 0714 4000-11°
4800mm 15,74ft 11° 14,9kg 0714 4800-11°
5485mm 18,00ft 11° 17,4kg 0714 5485-11°
5600mm 18,37ft 11° 17,8kg 0714 5600-11°
6400mm 21,00ft 11° 19,7kg 0714 6400-11°
7200mm 23,62ft 11° 22,1kg 0714 7200-11°
7315mm 24,00ft 11° 22,4kg 0714 7315-11°

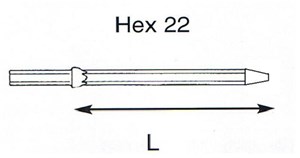

Tapered rods 22x108mm 12°
Length mm Length ft Degrees Weight Part number
400mm 1,31ft 12° 1,7kg 0714 0400-12°
610mm 2,00ft 12° 2,3kg 0714 0610-12°
800mm 2,62ft 12° 2,9kg 0714 0800-12°
915mm 3,00ft 12° 3.45kg 0714 0915-12°
1220mm 4,00ft 12° 4,1kg 0714 1220-12°
1600mm 5,24ft 12° 5,3kg 0714 1600-12°
1830mm 6,00ft 12° 5,9kg 0714 1830-12°
1980mm 6,49ft 12° 6,3kg 0714 1980-12°
2440mm 8,00ft 12° 7,7kg 0714 2440-12°
3050mm 10,00ft 12° 9,6kg 0714 3050-12°
3200mm 10,49ft 12° 10,1kg 0714 3200-12°
3660mm 12,00ft 12° 11,5kg 0714 3660-12°
4000mm 13,12ft 12° 12,5kg 0714 4000-12°
4800mm 15,74ft 12° 14,9kg 0714 4800-12°
5485mm 18,00ft 12° 17,4kg 0714 5485-12°
5600mm 18,37ft 12° 17,8kg 0714 5600-12°
6400mm 21,00ft 12° 19,7kg 0714 6400-12°
7200mm 23,62ft 12° 22,1kg 0714 7200-12°
7315mm 24,00ft 12° 22,4kg 0714 7315-12°

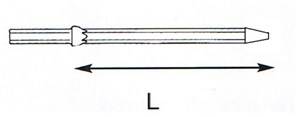

Tapered rods 25x108mm 7°
Length mm Length ft Degrees Weight Part number
1600mm 5,24ft 7° 6,8kg 0734 1600-7*
1800mm 5,90ft 7° 7,7kg 0734 1800-7*
2000mm 6,56ft 7° 8,5kg 0734 2000-7*
2200mm 7,21ft 7° 9,4kg 0734 2200-7*
2400mm 7,87ft 7° 10,3kg 0734 2400-7*
2500mm 8,20ft 7° 10,7kg 0734 2400-7*
3200mm 10,49ft 7° 13,7kg 0734 3200-7*

Shank rods



Shank rods R23
Length mm Length ft Thread Weight Part number
250mm 0,80ft R23 1,4kg 0714 0250 R23
400mm 1,31ft R23 1,8kg 0714 0400 R23
800mm 2,62ft R23 3,0kg 0714 0800 R23
1600mm 5,24ft R23 5,4kg 0714 1600 R23
1830mm 6,00ft R23 6,3kg 0714 1830 R23
1980mm 6,49ft R23 6,7kg 0714 1980 R23
2400mm 7,87ft R23 7,8kg 0714 2400 R23
2440mm 8,00ft R23 8,1kg 0714 2440 R23
3050mm 10,00ft R23 9,9kg 0714 3050 R23
3200mm 10,49ft R23 10,5kg 0714 3200 R23
3600mm 11,81ft R23 11,6kg 0714 3600 R23
4000mm 13,12ft R23 12,6kg 0714 4000 R23

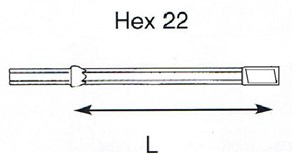

Shank rods R25
Length mm Length ft Thread Weight Part number
250mm 0,80ft R25 1,4kg 0714 0250 R25
400mm 1,31ft R25 1,8kg 0714 0400 R25
800mm 2,62ft R25 3,0kg 0714 0800 R25
1220mm 4,00ft R25 4,2kg 0714 1220 R25
1600mm 5,24ft R25 5,4kg 0714 1600 R25
1830mm 6,00ft R25 6,3kg 0714 1830 R25
1980mm 6,49ft R25 6,7kg 0714 1980 R25
2400mm 7,87ft R25 7,8kg 0714 2400 R25
2440mm 8,00ft R25 8,1kg 0714 2440 R25
3050mm 10,00ft R25 9,9kg 0714 3050 R25
3200mm 10,49ft R25 10,5kg 0714 3200 R25
3600mm 11,81ft R25 11,6kg 0714 3600 R25
4000mm 13,12ft R25 12,6kg 0714 4000 R25

Shank rods R28
Length mm Length ft Thread Weight Part number
250mm 0,80ft R28 1,4kg 0714 0250 R28
400mm 1,31ft R28 1,8kg 0714 0400 R28
800mm 2,62ft R28 3,0kg 0714 0800 R28
1600mm 5,24ft R28 5,4kg 0714 1600 R28
1830mm 6,00ft R28 6,3kg 0714 1830 R28
1980mm 6,49ft R28 6,7kg 0714 1980 R28
2400mm 7,87ft R28 7,8kg 0714 2400 R28
2440mm 8,00ft R28 8,1kg 0714 2440 R28
3050mm 10,00ft R28 9,9kg 0714 3050 R28
3200mm 10,49ft R28 10,5kg 0714 3200 R28
3600mm 11,81ft R28 11,6kg 0714 3600 R28
4000mm 13,12ft R28 12,6kg 0714 4000 R28

Shank rods R32
Length mm Length ft Thread Weight Part number
250mm 0,80ft R32 1,4kg 0714 0250 R32
400mm 1,31ft R32 1,8kg 0714 0400 R32
800mm 2,62ft R32 3,0kg 0714 0800 R32
1600mm 5,24ft R32 5,4kg 0714 1600 R32
1830mm 6,00ft R32 6,3kg 0714 1830 R32
1980mm 6,49ft R32 6,7kg 0714 1980 R32
2400mm 7,87ft R32 7,8kg 0714 2400 R32
2440mm 8,00ft R32 8,1kg 0714 2440 R32
3050mm 10,00ft R32 9,9kg 0714 3050 R32
3200mm 10,49ft R32 10,5kg 0714 3200 R32
3600mm 11,81ft R32 11,6kg 0714 3600 R32
4000mm 13,12ft R32 12,6kg 0714 4000 R32
Contact us
Back
FOR PARTNERS: Looking for logos and media files? Visit our ONLINE BRAND GUIDE

By using this website you agree to our privacy policy and our use of cookies.
ÅPENHETSLOVEN

Designed and developed by Norgesdesign. Powered by Paperfree
